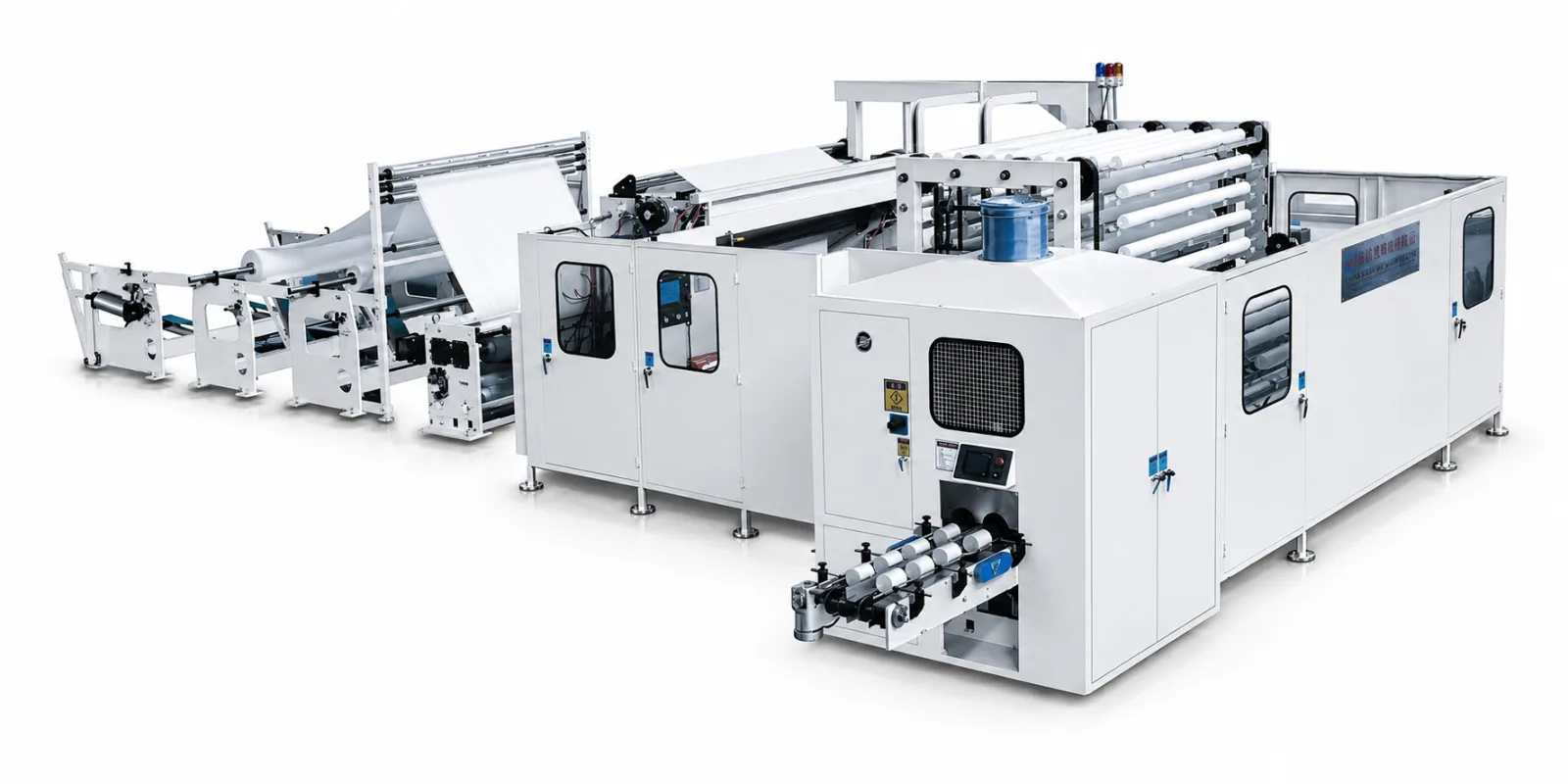

ULTRA-GRANDE-300
Continuous High Speed Rewinder Line
Continuous rewinding platform for consumer and institutional/JRT products, with 350 m/min design speed and 300 m/min with-core production speed.
- With-core speed
- 300 m/min
- Design speed
- 350 m/min
- Jumbo roll width
- 1750-3550 mm
- Finished log diameter
- Ø90-Ø300 mm
APPLICATIONS
- Toilet tissue
- Kitchen towel
- Institutional / JRT
OPTIONS
- Unwind stand: 1–3 ply, independent drive; final configuration specified by client
- Embossing: steel-to-rubber, point-to-point, lamination unit
- Edge embossing: steel-to-steel
- Printing: 1-2 colors (customer provides pattern)
TECHNICAL SPECIFICATIONS
| Application | Consumer or JRT (institutional rolls) products |
|---|---|
| Design speed | 350 m/min |
| With-core speed | 300 m/min |
| Coreless speed | 180 m/min |
| Jumbo roll width | 1750-3550 mm |
| Jumbo roll diameter | ≤ Ø1500 mm; larger diameters available to order |
| Jumbo roll core size | Ø76.2 mm (other sizes available) |
| Finished log diameter | Ø90-Ø300 mm |
| Perforation | 4 pcs spiral upper perforation knife |
| Rewind | Non-stop |
| Parameter set-up | HMI |
| Control | PLC |

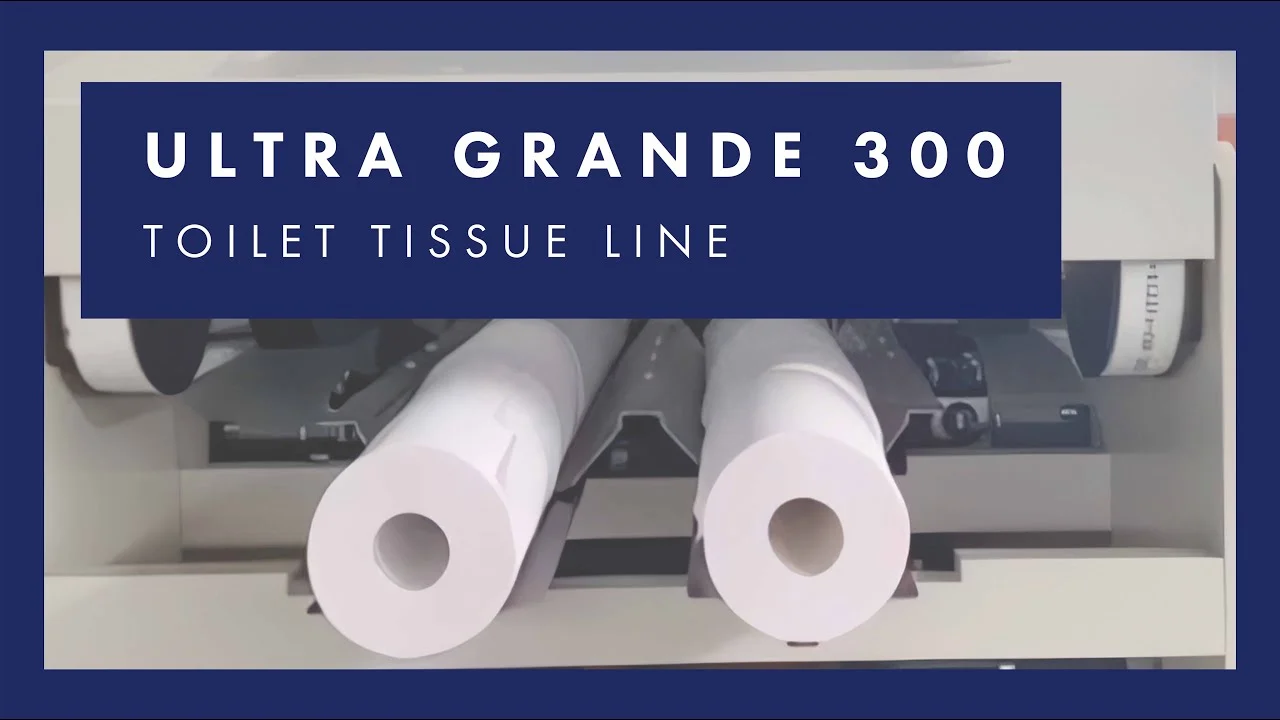

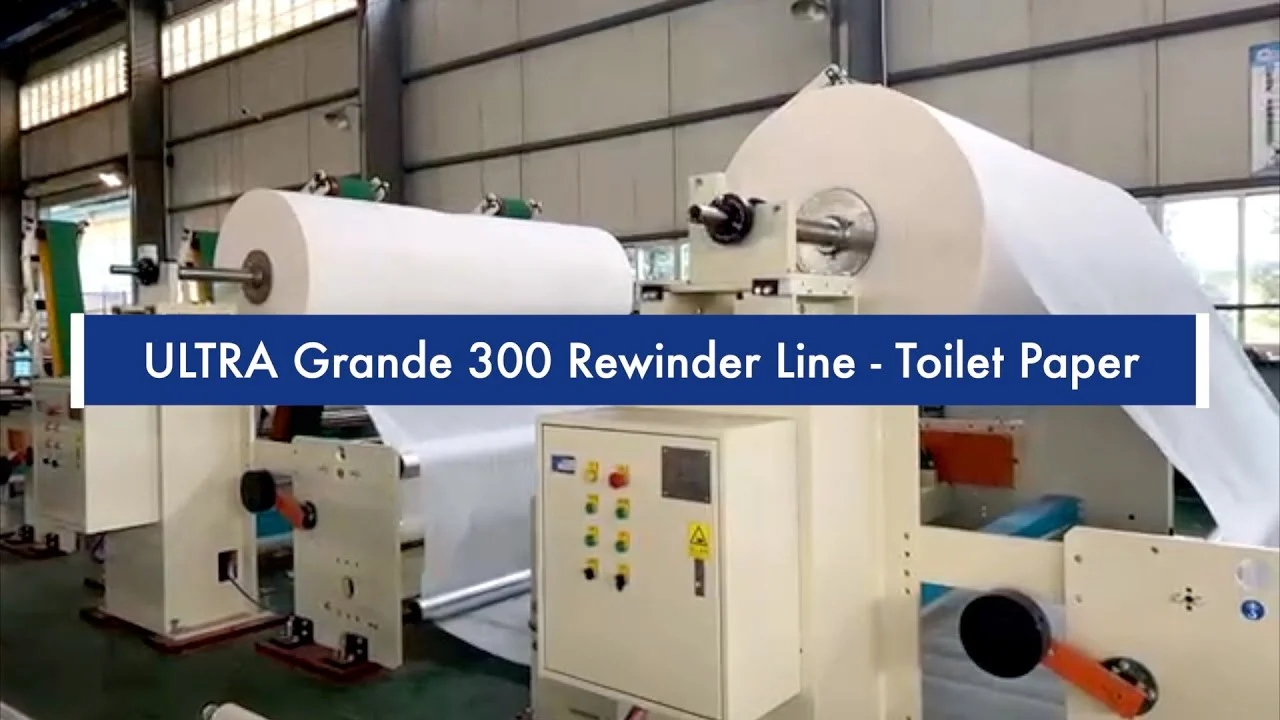

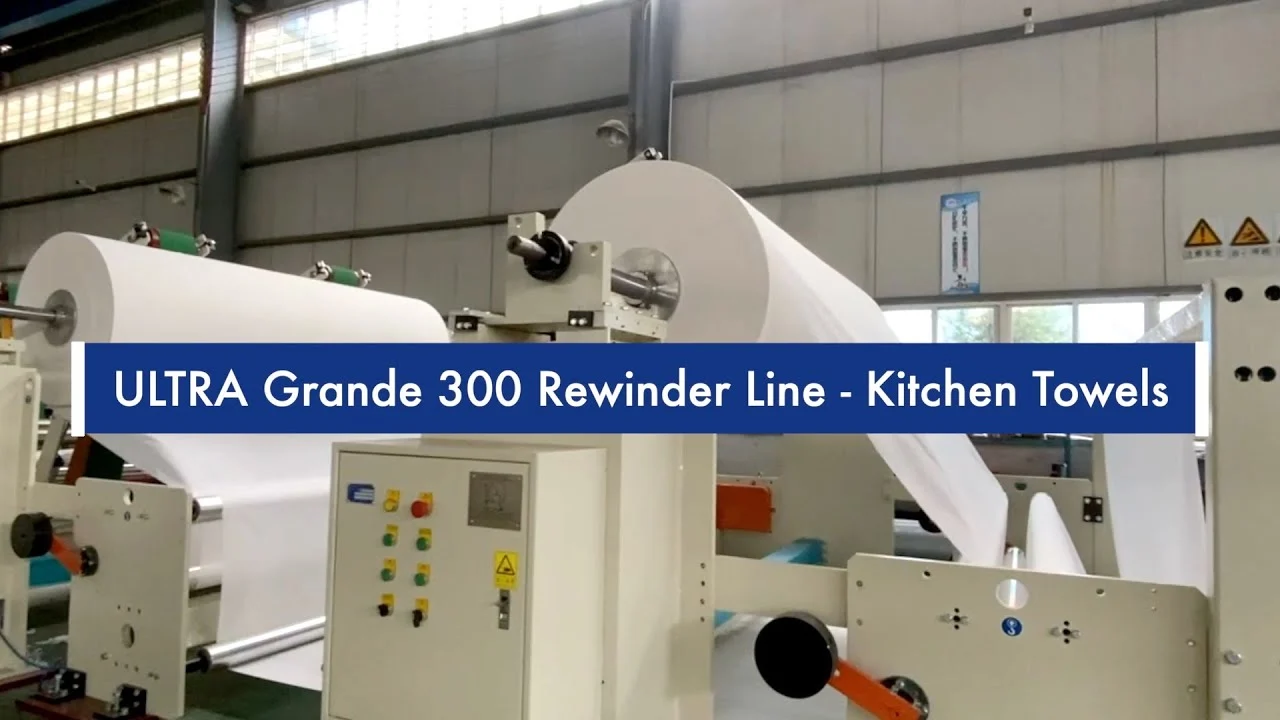

MEDIA
Playing this video will connect your browser to YouTube, which may use cookies or similar storage. See our Privacy Policy.
TALK TO ULTRA ENGINEERING
Tell us your product, dimensions and production target. ULTRA engineering will help determine the correct machine configuration.
