ULTRA-NP-C
AUTOMATIC TRANSFER NAPKIN LINE
1/4 or 1/6 fold napkins from 200×200 to 430×430 mm — mechanically folded, counted and transferred automatically at 300 m/min.
- Speed
- 300 m/min
- Output lanes
- Single lanes or double lanes
- 300 M/MIN
- Speed
- 1/4 OR 1/6 FOLD
- Folding type
- 200×200–430×430 MM
- Napkin size
- AUTOMATIC
- Transfer
01 · WHAT IT PRODUCES
02 · PROCESS
01 · UNWIND
One unwind stand feeds the line — jumbo roll diameter up to Ø1500 mm.
02 · CONVERTING
Mechanical folding configured for 1/4- or 1/6-fold napkins.
03 · TRANSFER
Automatic transfer carries the folded product from converting to output.
04 · OUTPUT
One or two output lanes according to the selected configuration.
03 · KEY CAPABILITIES
AUTOMATIC TRANSFER
Napkins transfer automatically from folding to output — no manual handling between sections.
MULTIPLE FORMATS
1/4 or 1/6 mechanical fold, with napkin sizes from 200×200 to 430×430 mm.
OPTIONAL EMBOSSING
Steel-to-paper embossing, steel-to-steel embossing or an embossing/lamination unit.
05 · TECHNICAL SPECIFICATIONS
PRODUCTION
| Speed | 300 m/min |
|---|---|
| Output lanes | One or two lanes |
| Transfer system | Automatic |
FINISHED PRODUCT
| Folding type | 1/4 or 1/6 fold · mechanical fold |
|---|---|
| Napkin size | 200×200–430×430 mm |
MACHINE
| Unwind stands | 1 unit |
|---|---|
| Jumbo roll diameter | Up to Ø1500 mm |
| Options | Steel-to-paper · steel-to-steel · lamination |
Final equipment selection and technical specification are confirmed by ULTRA engineering.

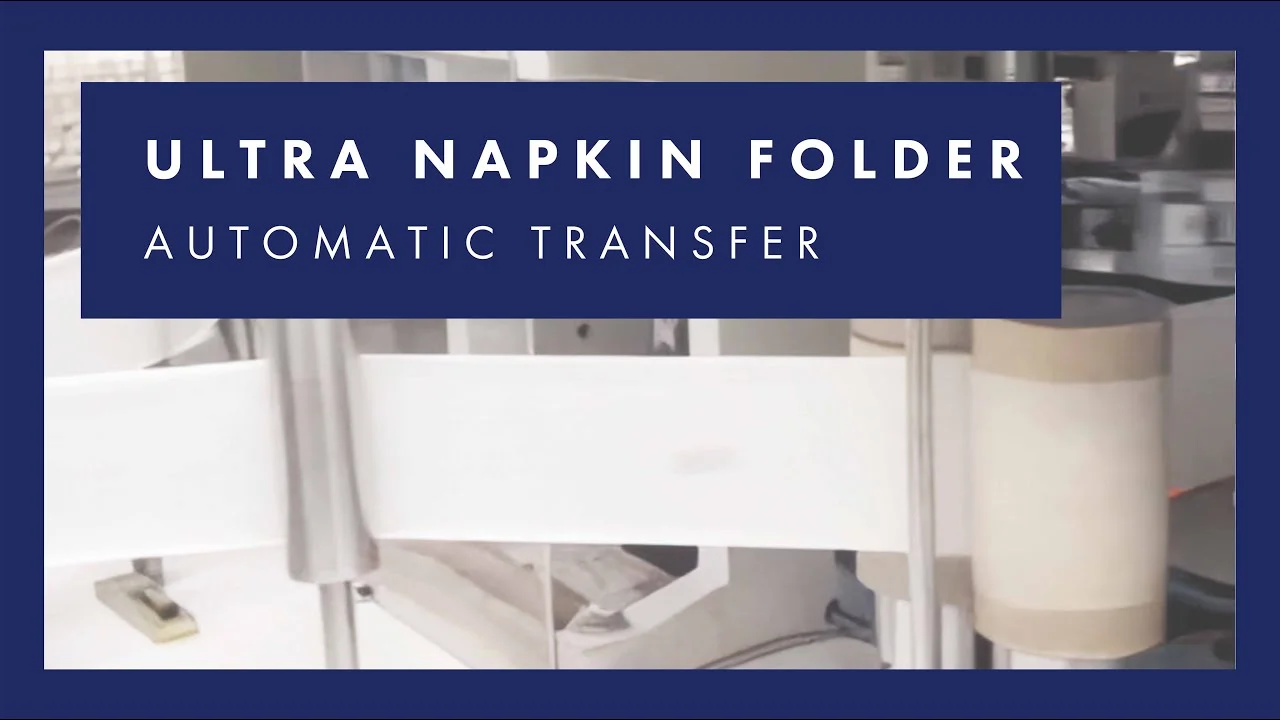

04 · MEDIA
Playing this video will connect your browser to YouTube, which may use cookies or similar storage. See our Privacy Policy.
The video shows family/installation footage. Current model specifications are defined by the approved ULTRA technical data above.
BUILD A COMPLETE NAPKIN LINE
Connect napkin converting, wrapping, bundling and cartoning around your required finished product and output.
TALK TO ULTRA ENGINEERING
Tell us your product, dimensions and production target. We’ll help determine the correct machine configuration.
