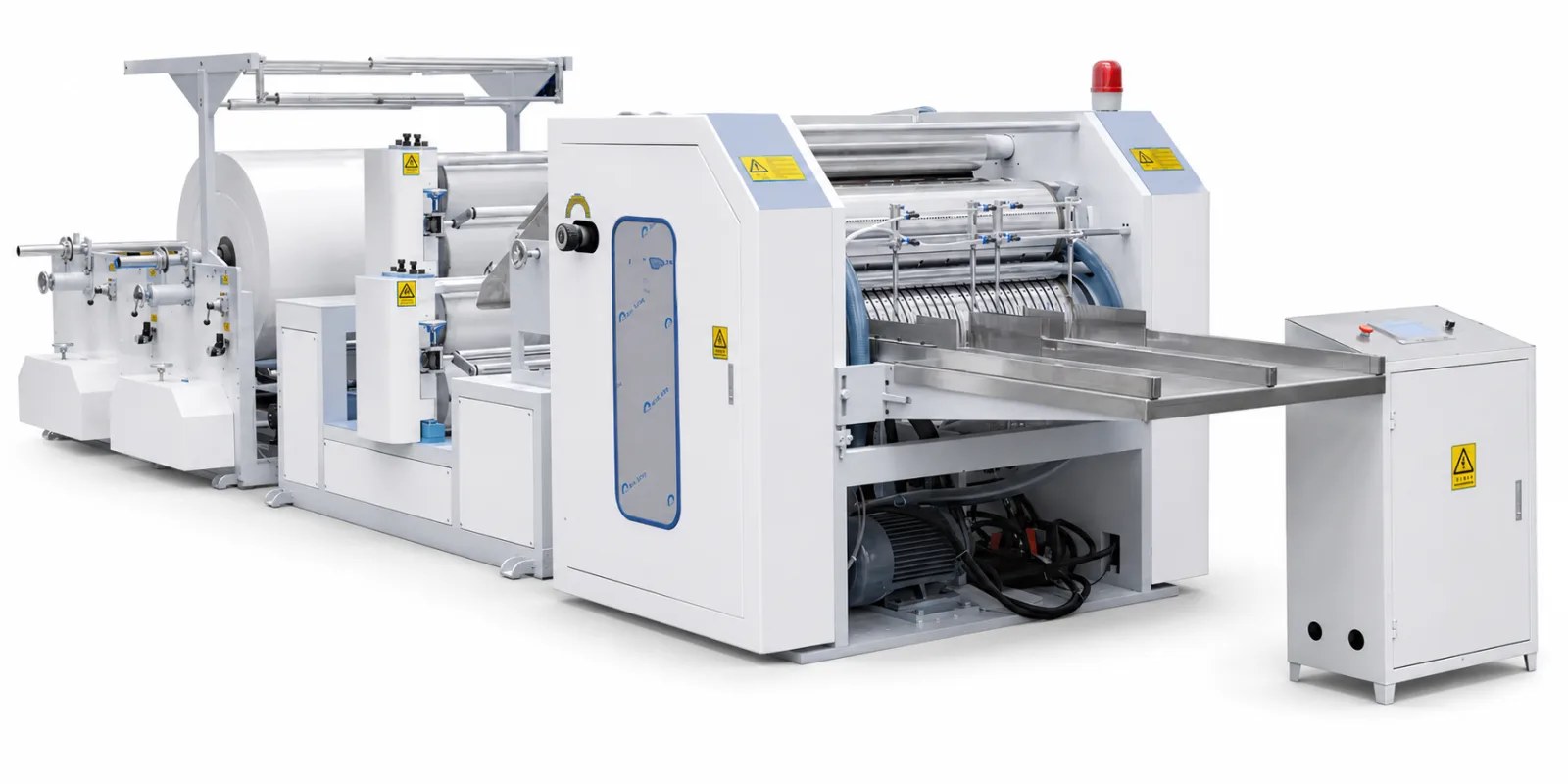

ULTRA-NP-DX
Manual Transfer 1/8 Fold Dinner Napkins Folder (Vacuum Fold)
Manual-transfer vacuum-fold line for 1/8-fold dinner napkins, available in 2- or 4-lane configurations at 300 m/min.
- Speed
- 300 m/min
- Output lanes
- 2 lanes / 4 lanes
- Folding type
- 1/8 Fold, vacuum fold
Model variants
The specifications below are common to both variants.
APPLICATIONS
- Dinner napkins
OPTIONS
- Steel-to-paper embosser
- Steel-to-steel embosser
- Embosser lamination unit
TECHNICAL SPECIFICATIONS
| Folding type | 1/8 Fold, vacuum fold |
|---|---|
| Output lanes | 2 lanes / 4 lanes |
| Speed | 300 m/min |
| Napkin size | 430×380 mm / 420×380 mm / 405×380 mm |
| Unwind stands | 1 unit / 2 units |
| Jumbo roll diameter | Up to Ø1500 mm |
| Transfer system | Manual |
| Vacuum pump | Included with the machine |
TALK TO ULTRA ENGINEERING
Tell us your product, dimensions and production target. ULTRA engineering will help determine the correct machine configuration.
