ULTRA-SR
High Speed Slitting Rewinder
A four-model slitting rewinder platform for jumbo-roll processing, from 300 to 1200 m/min design speed.
APPLICATIONS
- Jumbo roll slitting
VARIANTS / CONFIGURATIONS
ULTRA-SR1200
| Machine Width | 1750-3600 mm |
|---|---|
| Design Speed | 1200 m/min |
| Operation Speed | 1000 m/min |
| Jumbo Roll Diameter | Ø2500 mm |
| Finished Roll Diameter | Ø1500 mm |
ULTRA-SR800
| Machine Width | 1750-3600 mm |
|---|---|
| Design Speed | 800 m/min |
| Operation Speed | 750 m/min |
| Jumbo Roll Diameter | Ø2200 mm |
| Finished Roll Diameter | Ø1200 mm |
ULTRA-SR400
| Machine Width | 1750-2900 mm |
|---|---|
| Design Speed | 400 m/min |
| Operation Speed | 350 m/min |
| Jumbo Roll Diameter | Ø1500 mm |
| Finished Roll Diameter | Ø1100 mm |
ULTRA-SR300
| Machine Width | 1750-2900 mm |
|---|---|
| Design Speed | 300 m/min |
| Operation Speed | 280 m/min |
| Jumbo Roll Diameter | Ø1500 mm |
| Finished Roll Diameter | Ø1100 mm |

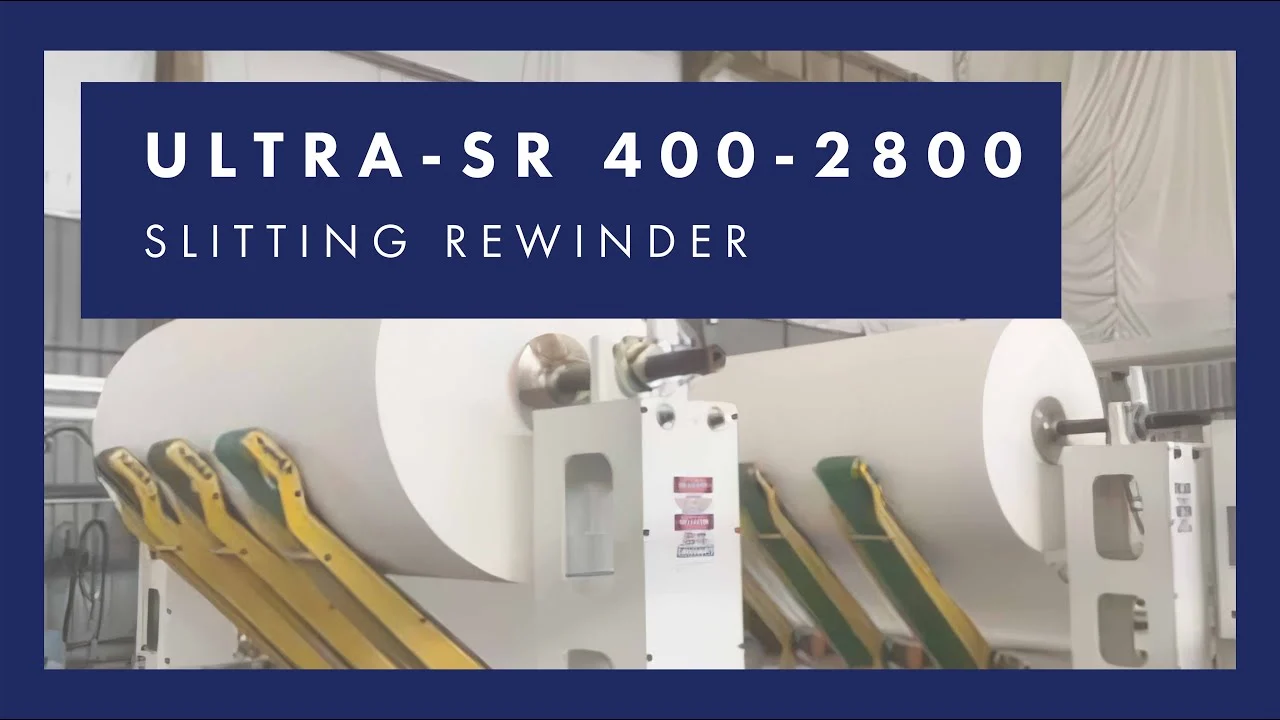

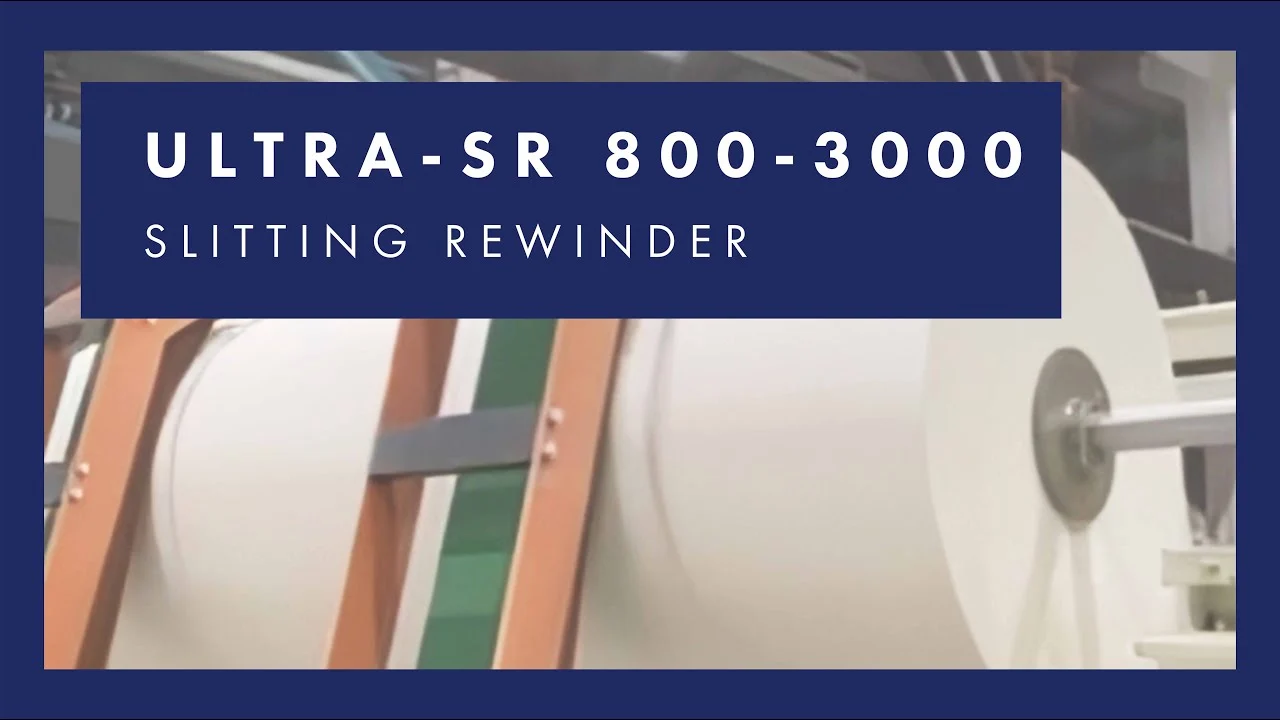

MEDIA
Playing this video will connect your browser to YouTube, which may use cookies or similar storage. See our Privacy Policy.
TALK TO ULTRA ENGINEERING
Tell us your product, dimensions and production target. ULTRA engineering will help determine the correct machine configuration.
