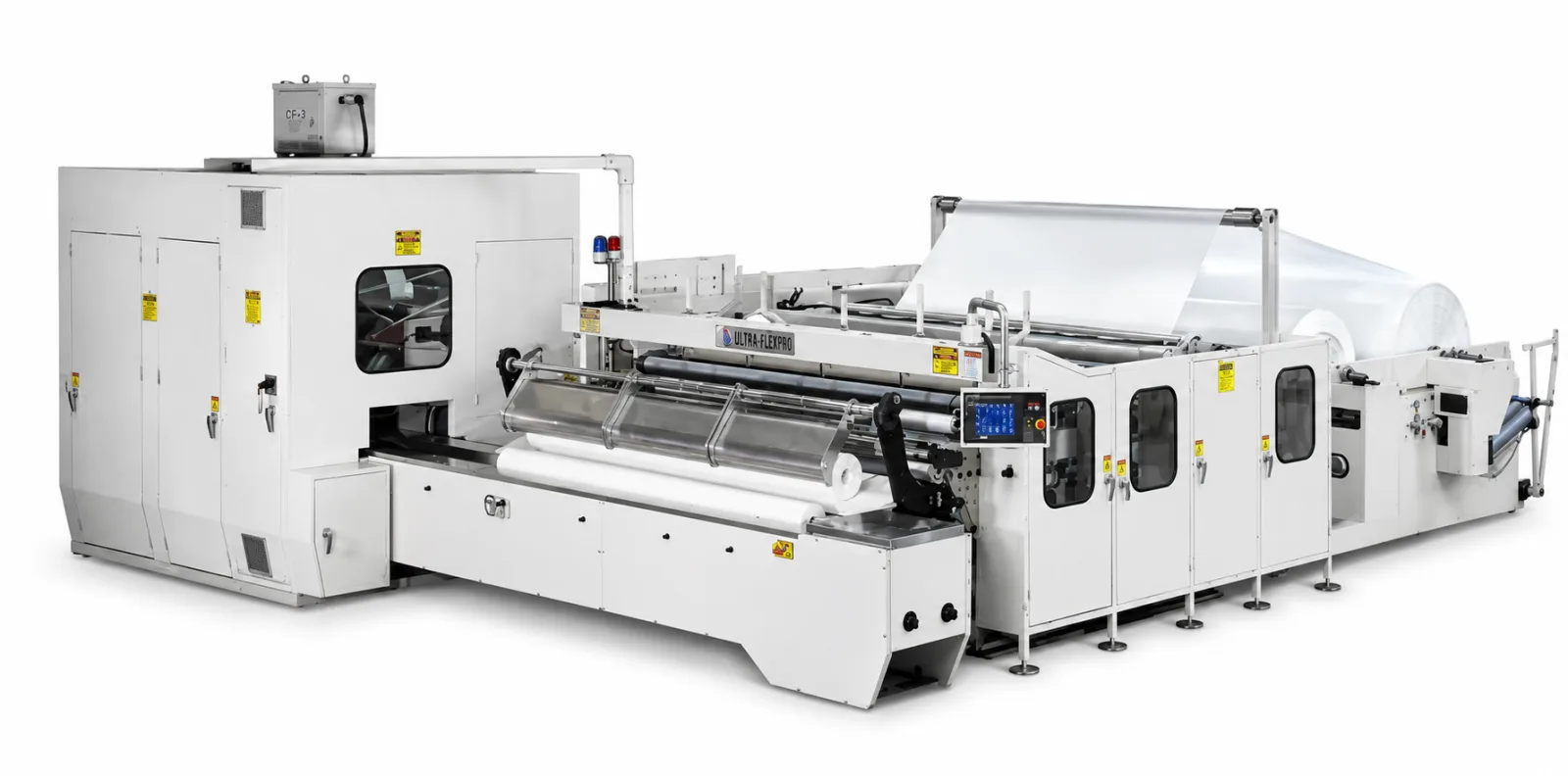

ULTRA-YD-E
Automatic Cycling Rewinder
Automatic cycling rewinder for toilet tissue, kitchen towel and institutional/JRT formats, with 300 m/min production speed and paper widths from 1200 to 2800 mm.
- Production speed
- 300 m/min
- Machine speed
- 325 m/min
- Paper width
- 1200-2800 mm
- Finished roll outside diameter
- Ø90-Ø300 mm
APPLICATIONS
- Toilet tissue
- Kitchen towel
- Institutional / JRT
OPTIONS
- Edge embossing
TECHNICAL SPECIFICATIONS
| Model | ULTRA-YD-E 300 |
|---|---|
| Machine speed | 325 m/min |
| Production speed | 300 m/min |
| Paper width | 1200-2800 mm |
| Jumbo roll diameter | up to Ø2000 mm |
| Unwind stand | 1, 2 or 3 unwind stands |
| Web tension control | Automatic |
| Tail sealing | Automatic |
| Embosser | Single, double embosser or lamination |
| Driving system | Independent drive |
| Finished roll outside diameter | Ø90-Ø300 mm |
| Finished roll core inside diameter | Ø40-Ø83 mm |
MEDIA
Playing this video will connect your browser to YouTube, which may use cookies or similar storage. See our Privacy Policy.
TALK TO ULTRA ENGINEERING
Tell us your product, dimensions and production target. ULTRA engineering will help determine the correct machine configuration.
