CONTINUOUS HIGH-SPEED REWINDING
ULTRA-GRANDE-650
Built for high-output toilet tissue, kitchen towel and institutional roll production.
- 650 M/MIN
- Machine speed*
- 600 M/MIN · 35 LOGS/MIN
- Operating speed*
- 1500–3600 MM
- Parent roll width

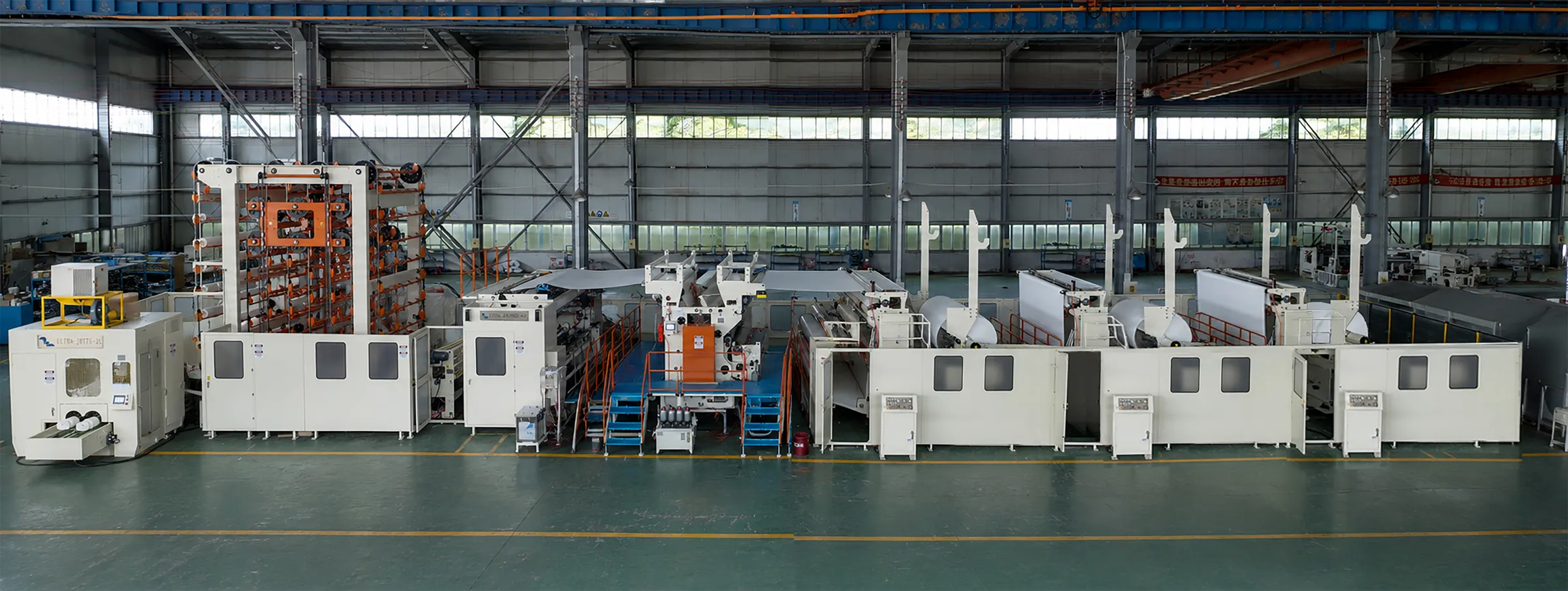

FROM PARENT ROLL TO FINISHED PRODUCT.
REWINDER · ACCUMULATOR · HIGH-SPEED LOG SAWONE INTEGRATED CONVERTING LINE
01 · PERFORMANCE
- 650
- M/min machine speed*
- 600
- M/min operating speed*
- 35
- Logs/min
- 1500–3600
- mm parent roll width
- Ø90–Ø355
- mm finished roll diameter
- 1–3 PLY
- 14–30 gsm converting web
*Depending on configuration.
02 · APPLICATIONS
WHAT WILL YOU PRODUCE?
TOILET TISSUE
Consumer toilet rolls from 1–3 ply web, 14–30 gsm. Finished roll outside diameter Ø90–Ø355 mm and finished-roll core inside diameter Ø35–Ø80 mm.
KITCHEN TOWEL
Kitchen towel production with variable perforation pitch and available embossing, lamination and printing configurations.
INSTITUTIONAL / JRT
Institutional and JRT roll production on the same Grande platform.
TOILET TISSUE + KITCHEN TOWEL
Both products on one line. Variable perforation pitch and servo-controlled variable cutting length cover the two formats, with finished roll outside diameter from Ø90 to Ø355 mm and core inside diameter from Ø35 to Ø80 mm. Embossing, lamination and 1–2 color printing are available as options.
TOILET TISSUE + INSTITUTIONAL / JRT
Consumer and institutional rolls on the same Grande platform. The rewinder converts 1–3 ply web from 14–30 gsm across both, and the log saw cuts to variable length from logs 1500–3600 mm long at Ø90–Ø150 mm.
KITCHEN TOWEL + INSTITUTIONAL / JRT
Kitchen towel and JRT production from the same parent rolls, 1500 to 3600 mm wide. Variable perforation pitch and variable cutting length set each format, with two or three jumbo-roll stands available.
03 · ON-MACHINE INTELLIGENCE
ULTRA VOICE
THE LINE SPEAKS. OPERATORS ACT.
ULTRA VOICE is an on-machine voice agent that communicates directly with operators through the line speakers.
It announces line conditions, guides operating procedures and delivers step-by-step instructions while production continues.
PATENT PENDING
“Jumbo Roll 2 is running low. Prepare the next jumbo roll while the line continues running.”
REAL-TIME LINE ALERTS
Relevant machine conditions communicated directly to the operator.
GUIDED PROCEDURES
Step-by-step voice guidance for operating and production procedures.
HANDS-FREE OPERATOR SUPPORT
Information reaches the operator without requiring them to stop and search through menus or manuals.
04 · ENGINEERING

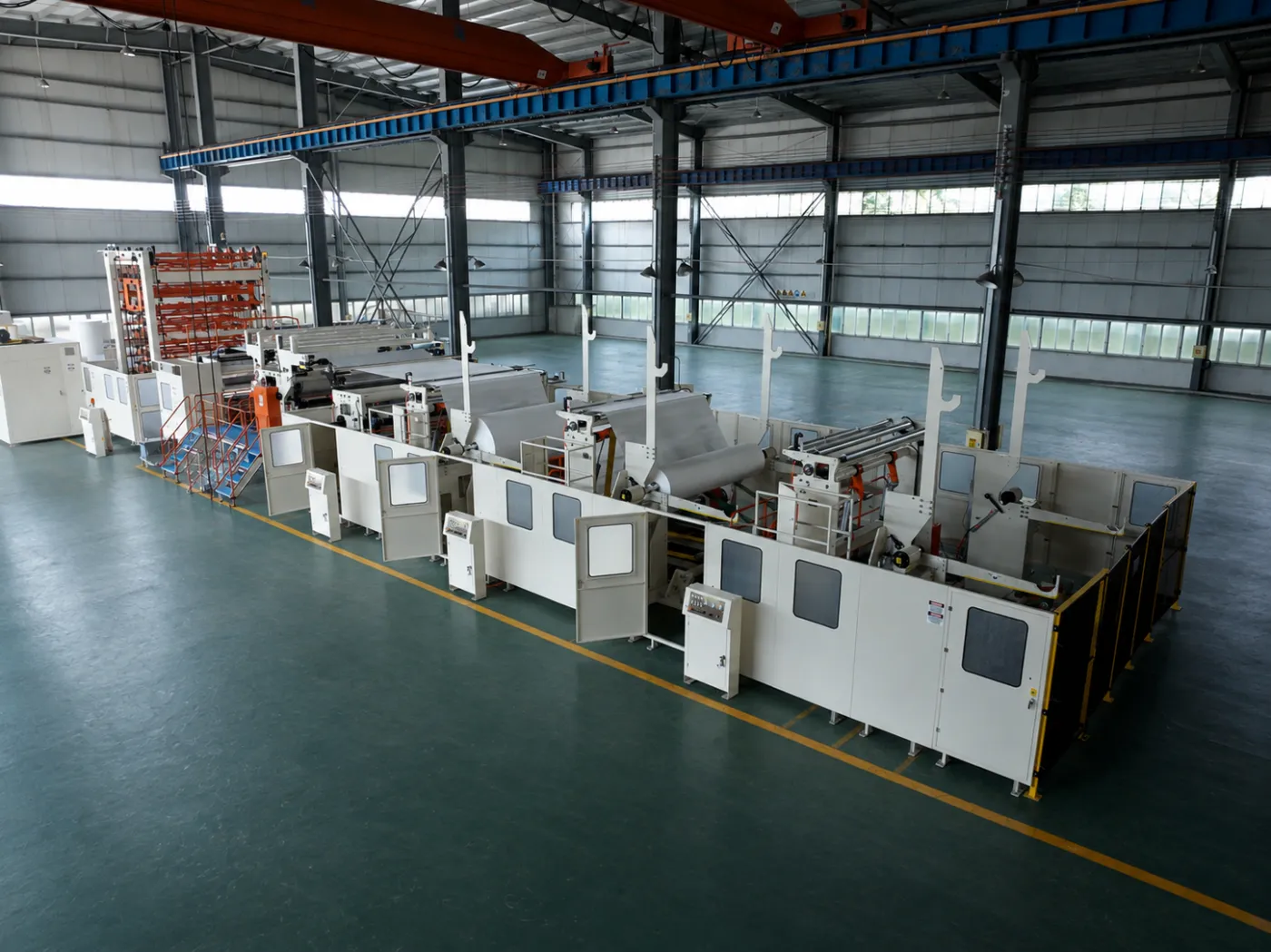

CONTROLLED AT SPEED
Servo-drive control and variable perforation pitch support stable converting at high operating speed. The rewinder is configured around 1–3 ply web from 14–30 gsm.
ACCUMULATION TO CUT
The accumulator feeds the high-speed log saw at up to 35 logs/min. The saw is rated up to 230 cuts/min machine speed, with four rolls per cut and servo-controlled variable cutting length.
05 · FILMS

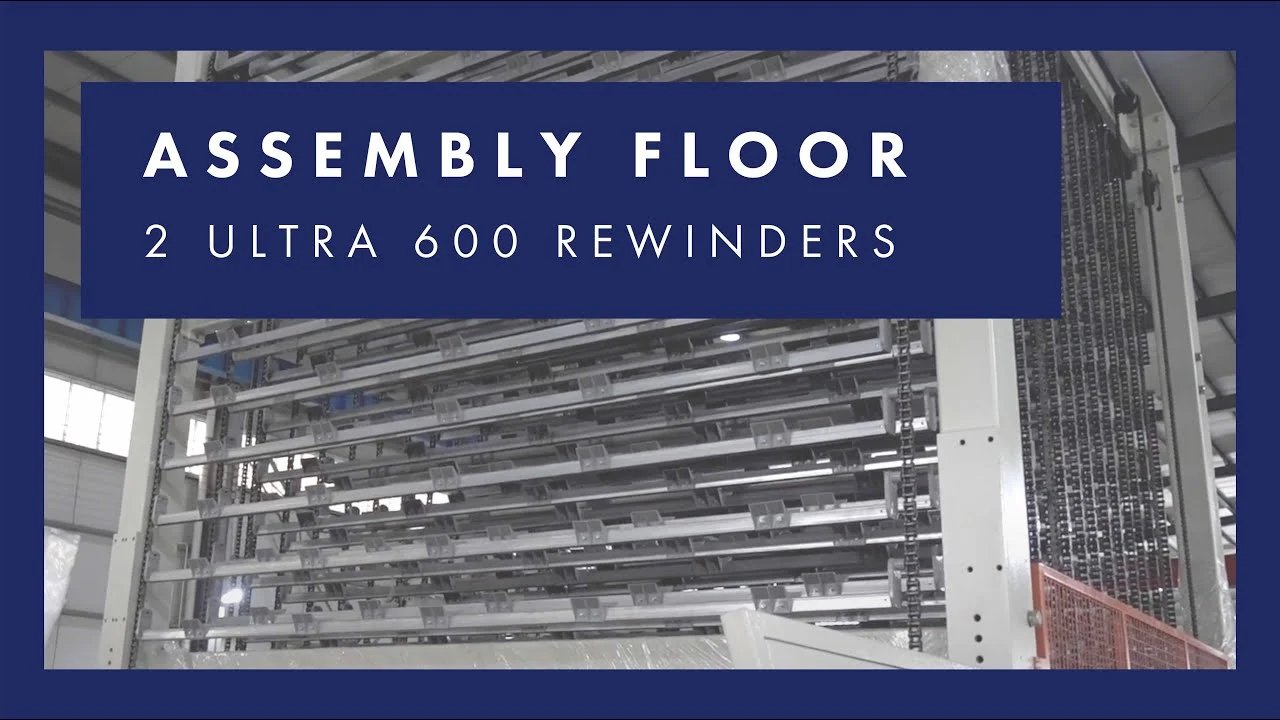

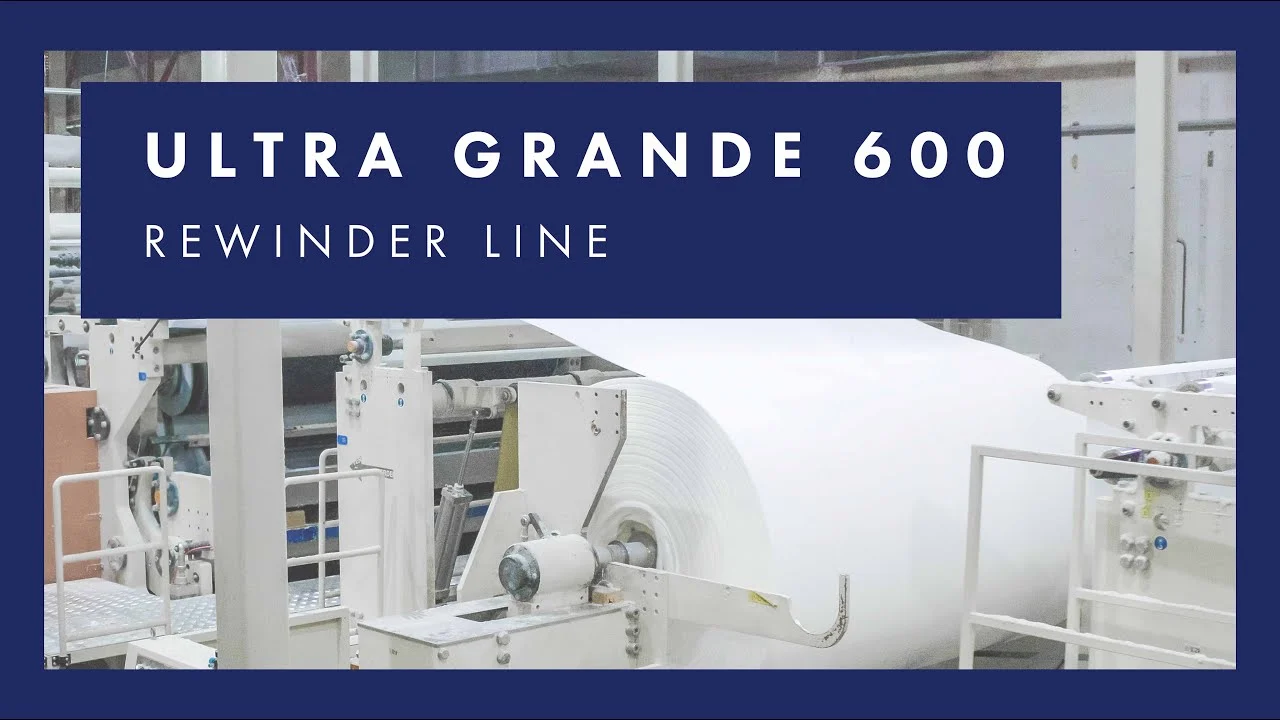

SEE THE GRANDE IN PRODUCTION
The current ULTRA-GRANDE-650 evolves the Grande 600 and Grande 625 platforms shown in selected production footage below.
Playing this video will connect your browser to YouTube, which may use cookies or similar storage. See our Privacy Policy.
06 · TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Download Technical DataREWINDER
| Application | Consumer or JRT / institutional rolls |
|---|---|
| Parent roll width | 1500–3600 mm |
| Parent roll diameter | Ø2500 mm |
| Parent roll core inside diameter | 3 in / 76 mm; other sizes configurable |
| Machine speed | 650 m/min, depending on configuration |
| Operating speed | 600 m/min · 35 logs/min, depending on configuration |
| Finished roll outside diameter | Ø90–Ø355 mm |
| Perforation pitch | Variable |
| Finished roll core inside diameter | Ø35–Ø80 mm |
| Converting web | 1–3 ply · 14–30 gsm |
| Installed power | AC motor 25–100 HP, depending on options |
ACCUMULATOR
| Log length | 1500–3600 mm |
|---|---|
| Log outside diameter | Ø90–Ø150 mm |
| Effective logs | Specified by customer |
| Loading speed | 35 logs/min |
| Installed power | AC motor 1 HP × 2 sets |
HIGH-SPEED LOG SAW
| Log length | 1500–3600 mm |
|---|---|
| Log outside diameter | Ø90–Ø150 mm standard |
| Cutting length | Variable · servo control |
| Machine speed | 230 cuts/min · 4 rolls/cut |
| Operating speed | 200 cuts/min · 4 rolls/cut |
| Finished roll outside diameter | Ø90–Ø150 mm |
| Blade outside diameter | Ø610 mm |
| Installed power | AC motor 5 HP × 1 · VS 5 HP × 1 · AC 1/2 HP × 1 |
OPTIONS
Final equipment selection and technical specification are confirmed by ULTRA engineering.
BUILD YOUR GRANDE 650 LINE.
Tell us your product, parent-roll width, finished product, production target and downstream packaging requirement.
